20V MAX XR 12″ Sliding Miter Saw
$649.00
Easily tackle demanding woodworking applications with the 60V MAX* 12in. Double Bevel Sliding Miter Saw. Cut. Capture. Charge: with Regenerative Braking Technology to extend runtime with virtually every cut, up to 675 cuts in 3-1/4 in. MDF base molding or up to 255 cuts in pressure treated 4 in. x 4 in. timber, all on only one DEWALT FLEXVOLT DCB609 battery. This miter saw features an efficient bevel gear transmission and has the ability to capture up to 94% of dust. The CUTLINE blade positioning system provides accurate cut line indication. The saw also features updated controls designed for overall ergonomics compared to previous DEWALT designs. At a weight of 50.9 lb (tool only), easily take this saw on the go across demanding jobsites.
Highlights

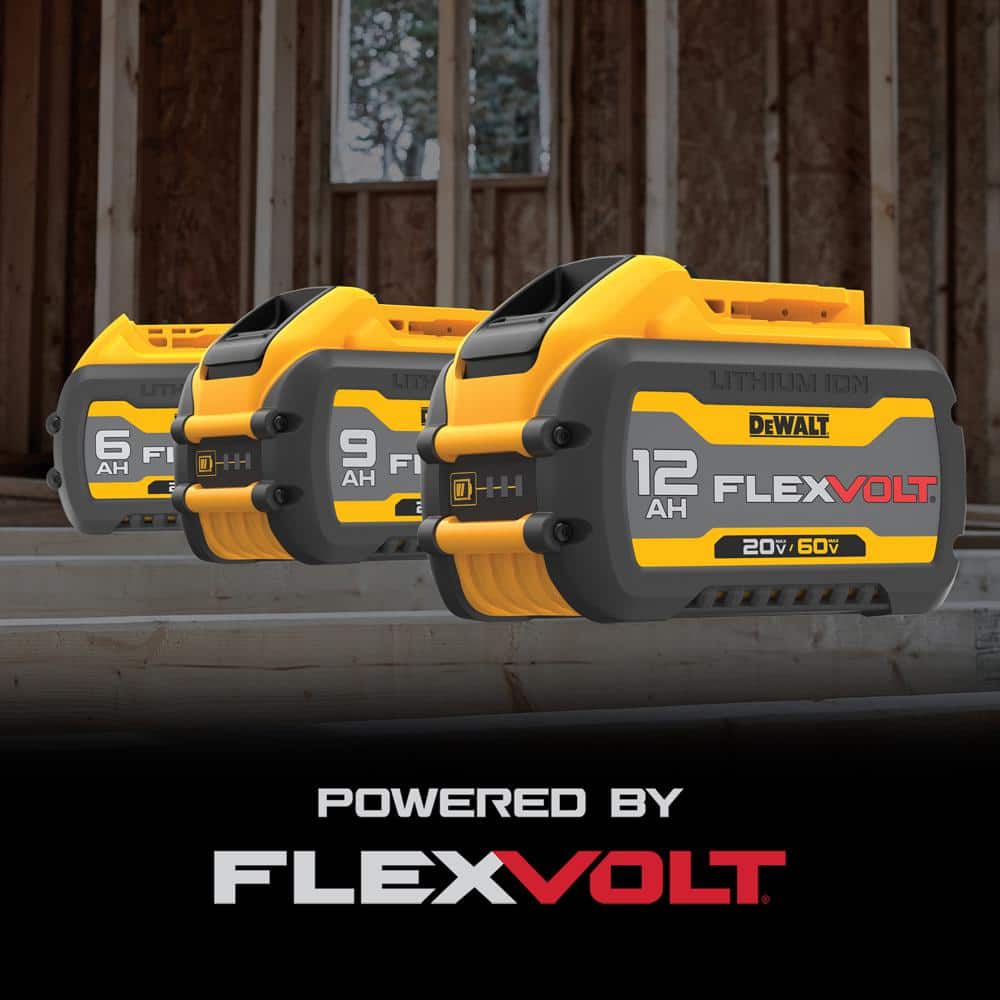

- SINGLE BATTERY OPERATION Capable power from 60V MAX* to tackle professional applications. Battery sold separately
- EXCEPTIONAL RUNTIME Delivers up to 675 cuts in 3 1/4 in. MDF Base Molding & 255 cuts in pressure treated 4 in. x 4 in. Lumber
- CUT.CAPTURE.CHARGE Regenerative Braking Technology extends runtime by redirecting lost energy back into the battery (sold separately).
- EFFICIENT DUST CAPTURE Up to 94% of dust captured when cutting 2×10 SPF using DWV015 Dust Extractor (sold separately).***

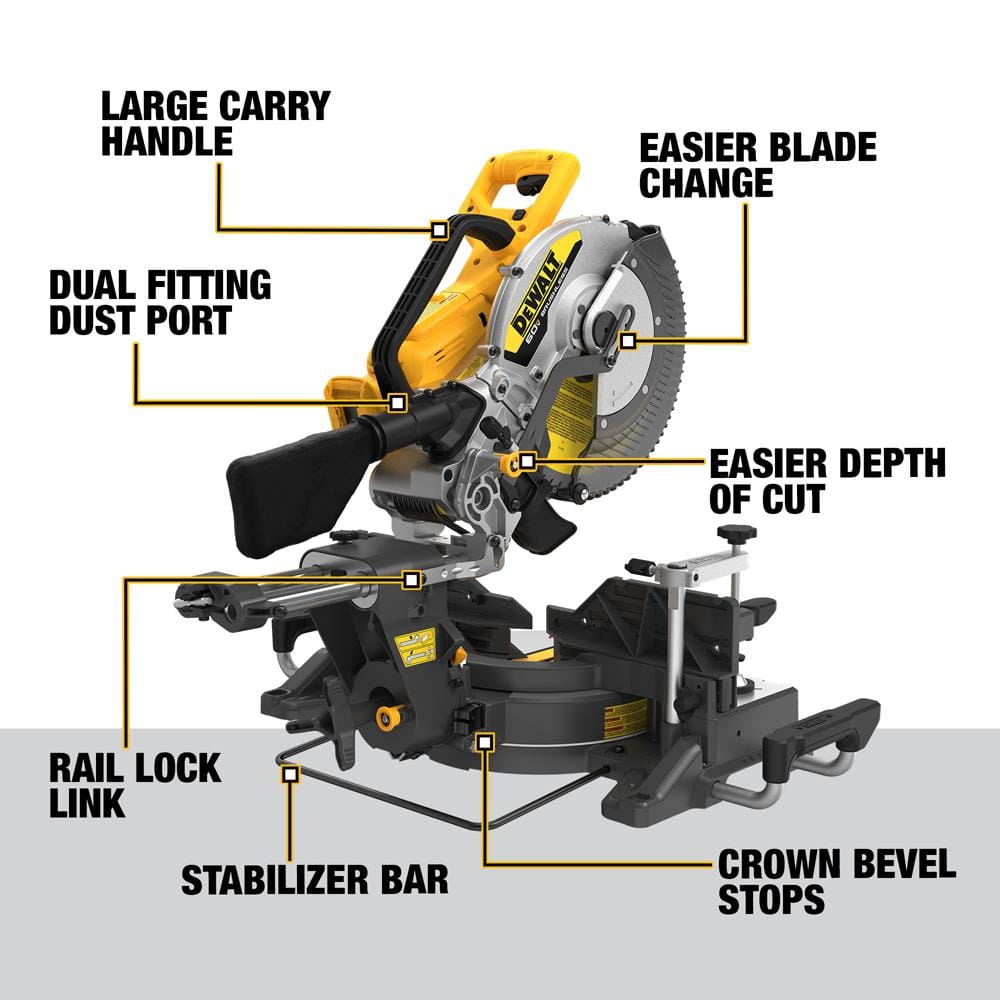

- DUAL-FITTING DUST PORT Standard AirLock port for seamless integration with DEWALT extractors, also compatible with standard 1-7/8 in. & 2-1/2 in. wet/dry vacuums with included adapter. (Extractors and wet/dry vacuums sold separately.)
- OPTIMIZED CAPACITY Cuts 6-1/2 in. Baseboard Vertically, 6-1/2 in. Crown Molding Nested & 12-3/16 in. wide lumber

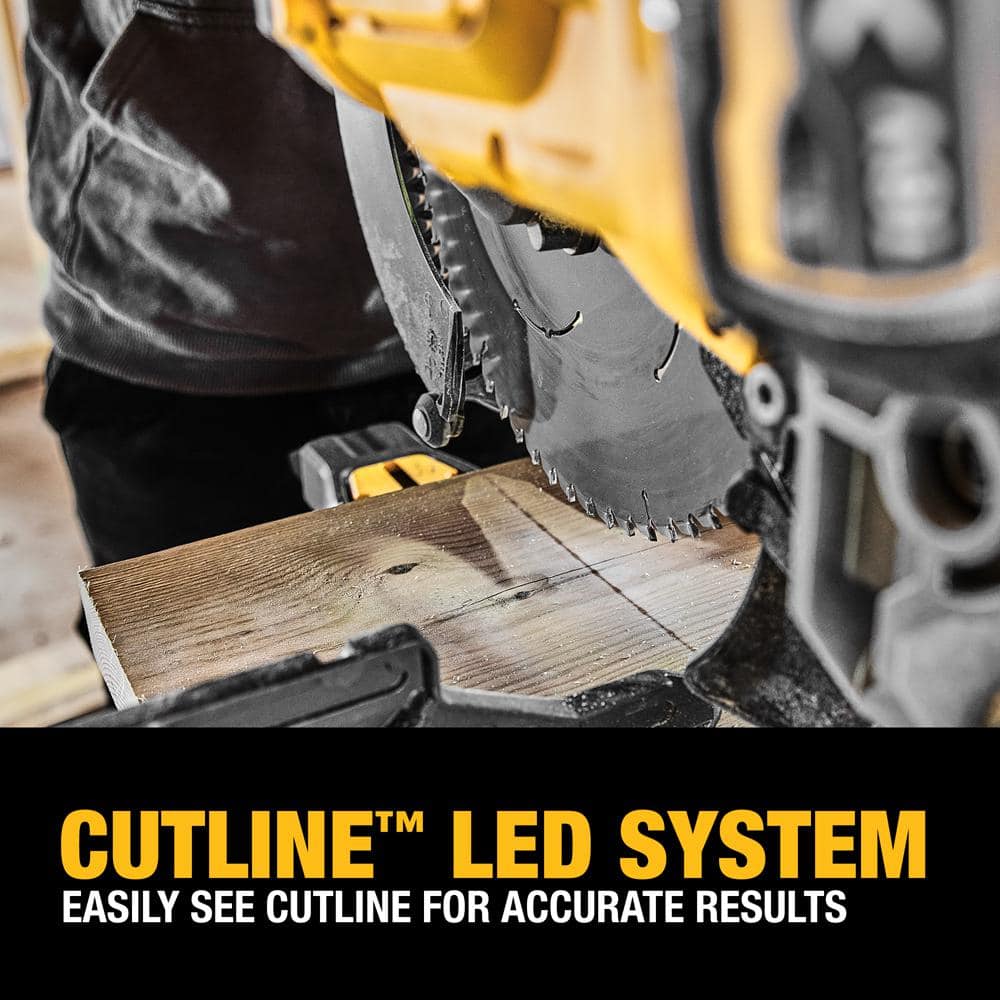

- PROVEN ACCURACY – CUTLINE blade positioning system provides adjustment-free cut line indication
- CONVENIENT PORTABILITY Optimized design weighs only 50.9 lb (bare tool) for easy transport
- BEVEL-GEAR TRANSMISSION delivers fast, reliable cutting and is designed to reduce the power losses that may occur with belt-drive designs
- EASE OF USE: Easy blade change and cut depth, miter and bevel cut adjustment
Details
| Battery Amp Hours | No Battery |
|---|---|
| Battery Power Type | Lithium Ion |
| Battery Size | Lithium Ion |
| Battery Voltage (V) | 20V |
| Bevel Capacity (degrees) | 50° |
| Blade Location | Left |
| Charger Included | Charger Not Included |
| Color Family | Yellow |
| Condition | New |
| Cordless Tool Type | Circular Saw |
| Cordless/Corded | Cordless |
| Included | Tool Only |
| Maximum Cut Depth at 45 Degrees (in.) | 2.12 in |
| Maximum Cut Depth at 90 Degrees (in.) | 2.125 in |
| Maximum Speed (RPM) | 4950 RPM |
| Motor Type | Brushless |
| Number of Total Batteries Included | 0 |
| Power Tool Features | Keyless Blade Change, Spindle Lock |
| Product Weight (lb.) | 8 lb |
| Returnable | 90-Day |
| Saw Drive Type | Sidewinder |
| Tool Series | Base Series |
| Tools Product Type | Power Tool |
| Dimensions | 32.36 × 24.02 × 20.93 in |
|---|---|
| Model | DCS781B |
| Arbor Size (in.) | 5/8 in |
| Blade Diameter (in.) | 12 in |
