18V 12″ Glide Miter Saw

$1.00

PROFACTOR™ 18V 12 In. Dual-Bevel Glide Miter Saw (Bare Tool) PROFACTOR™ performance – for a truly mobile jobsite solution, this saw provides light weight and pro capacity Axial-Glide™ system – has an articulating arm, for wider cross-cuts enhanced alignment, and smooth glide while taking less space Large cutting capacity –...
SKU: BOS-GCM18V-12GDC Category: Brand:

PROFACTOR™ 18V 12 In. Dual-Bevel Glide Miter Saw (Bare Tool)

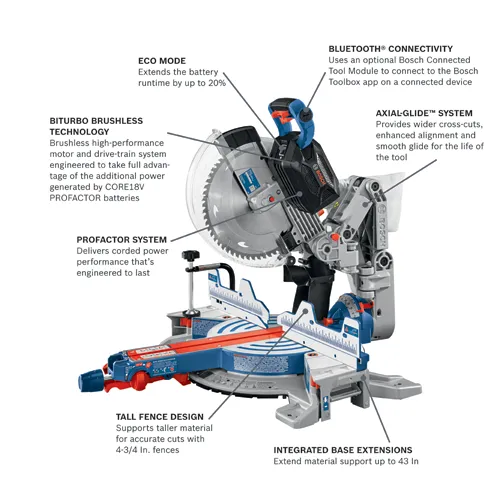

  • PROFACTOR™ performance – for a truly mobile jobsite solution, this saw provides light weight and pro capacity
  • Axial-Glide™ system – has an articulating arm, for wider cross-cuts enhanced alignment, and smooth glide while taking less space
  • Large cutting capacity – features a cut capacity of 3.5 In. depth and a 13.5 In. width/crosscut

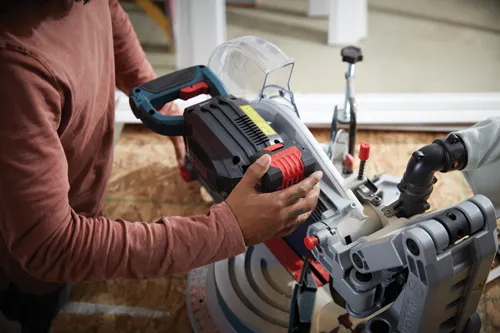

  • BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries (sold separately)
  • Convenient portability – weighs only 59.3 Lbs. (tool only, not including battery)
  • ECO mode – extends the battery runtime by up to 20%, for getting work done
  • Connectivity (module sold separately) – link to connected device via Bosch PRO360 App to customize settings and receive detailed feedback
  • Integrated base extensions – extend material support up to 43 In.
  • Tall fence design – supports taller material for accurate cuts with 4-3/4 In. fences
  • Accurate laser guide system – precisely aligns the cut line to the blade

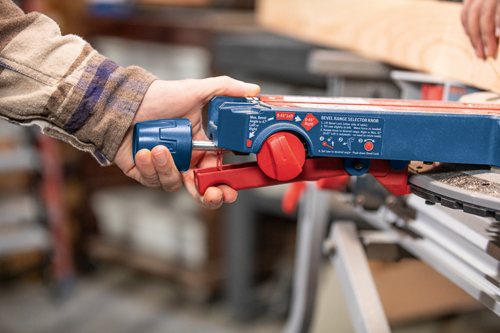

  • Upfront bevel control – located to make bevel adjustments easy left to right, keeping the user’s hands away from the blade
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee

Product Highlights

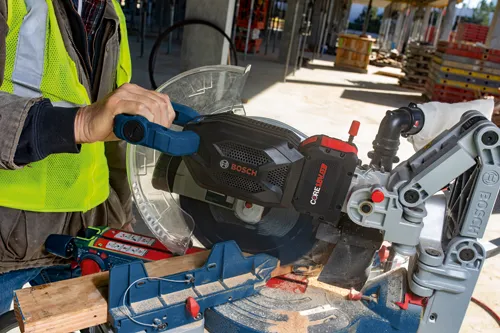

This Bosch 12 In. miter saw features the Axial-Glide™ System and BITURBO Brushless™ Technology to deliver a professional cordless solution to the jobsite. The GCM18V-12GDC features the Bosch-exclusive Axial-Glide™ for wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. This system features an articulating arm with no slide arms behind the saw, so it takes less space than a sliding-rail miter saw. It delivers a large cutting capacity, with a 3.5 In. depth and a 13.5 In. width/crosscut. The bevel controls are upfront for easy access. This compact saw is portable while being compatible with a variety of 12 In. blades. This miter saw is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. It has ECO mode, which extends the battery runtime by up to 20%. The saw features connectivity (module sold separately), providing a link to a connected device via Bosch PRO360 App to customize speed selection and individual mode setting. The saw provides integrated base extensions that extend material support up to 43 In. The 4-3/4 In. tall fence design supports taller material for accurate cuts.

The most important data

Battery Chemistry Lithium Ion
Bevel Angle Range 47° left and 47° right
Bevel Stops 0°, 33.9°, 45° and 47° (L/R)
Blade Diameter (in) 12
Blade Size 12″
Case Type No Case Included
Category Benchtop
Height (in) 27″
Length (in) 32″
Max. Base Molding Against Fence 7-1/4 in. (4 in. from 31.6° to 60° R)
Max. Crown Molding (38° Spring) Angled Against Fence 5-1/2 in.
Max. Crown Molding (45° Spring) Angled Against Fence 6 in.
Max. Cut Capacity – 0° Miter / 0° Bevel 3-1/2 in. × 13-1/2 in.
Max. Cut Capacity – 0° Miter / 45° Left Bevel 2 in. × 13-1/2 in.
Max. Cut Capacity – 0° Miter / 45° Right Bevel 1-1/2 in. × 13-1/2 in.
Max. Cut Capacity – 45° Miter / 0° Bevel 3-1/2 in. × 9-1/2 in.
Max. Cut Capacity – 45° Miter / 45° Left Bevel 2 in. × 9-1/2 in.
Max. Cut Capacity – 45° Miter / 45° Right Bevel 1-1/2 in. × 9-1/2 in.
Miter Angle Range 52° Left, 60° Right
Miter Detents 0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (Right)
Weight 59.3 lb
Width (in) 26.5″
Works With Recommended Battery Packs: GBA18V60, GBA18V80, GBA18V120 Batteries;
Bosch Bluetooth® Connectivity Module: GCY42 (see tool manual);
Miter Saw Stands: T1B, T4B, GTA3800;
Crown Molding Stops (Pair): MS1233;
Length Stop: MS1234;
Anti-Static Vacuum Hoses: VH1622A, VH1635A (with anti-static adapter),
VAC008, and most other 22 mm and 35 mm anti-static hoses;
Other Vacuum Hoses: VH1022, VH1035, VH1635 (with VX120 adapter),
VAC005, VAC006, and most other 22 mm and 35 mm hoses;
Adapters for 1-1/4 in. and 1-1/2 in. Vacuum Hoses: VAC024
(VAC002 not compatible with GCM18V-12GDC)
Includes (1) GCM18V-12GDC PROFACTOR™ 18V 12 in. Dual-Bevel Glide Miter Saw
(1) 12 in. Blade
(1) Material Clamp
(1) Wrench
(1) Dust Bag
Weight 59.3 lbs
Dimensions 32 × 26.5 × 27 in
Model

GCM18V-12GDC
